Industrial-Grade Freight Elevators: Powering Efficient Vertical Transportation

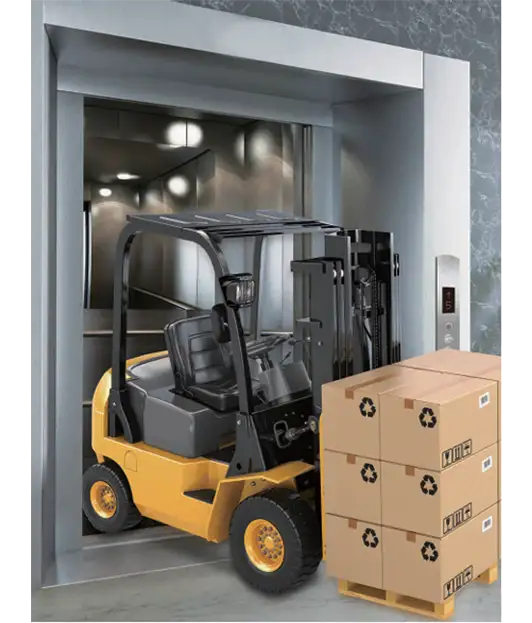

Cargo elevators (also called freight elevators or goods lifts) are engineered for moving heavy loads – not designed to transport people. These robust systems are essential for vertical transportation in demanding environments like factories, warehouses, distribution centers, and service cores of high-rise buildings or large commercial buildings. Unlike passenger elevators, they prioritize maximum weight capacity, impact resistance, and operational reliability under continuous heavy use.

Core Engineering & Specifications

• Unmatched Load Handling: Capacities from 1,000 kg (2,200 lbs) standard models to 20,000+ kg (44,000+ lbs) for extreme industrial needs.

• Ultra-Robust Construction: Reinforced steel elevator car structures, industrial-grade guide rails (min. 16mm thickness), and heavy-duty door systems (vertical biparting or heavy sliding doors) withstand forklifts, pallet jacks, and impacts.

• Optimized Drive Systems:

  • Hydraulic: Ideal for capacities >10,000 kg or low/mid-rise (≤6 stops), offering powerful lifting with lower initial cost. Features variable displacement pumps for reduced energy consumption.

  • Traction (Gearless/Geared): Superior for mid/high-rise buildings, offering higher speeds (0.3 - 1.0 m/s) and significantly lower long-term energy use via regenerative VVVF drives. MRL (Machine-Room-Less) options save space.

• Energy Efficiency Focus: Regenerative drives feed braking energy back to the grid, LED car lighting, sleep mode activation, and efficient motor control cut operational costs by 30-50% vs. older models.

• Safety & Compliance: Exceeds EN 81-20/50 & ASME A17.1 standards. Includes overspeed governor, safety gear, emergency brakes, pit buffer, alarm, and door interlocks.

Model Spotlight: Titan Series Heavy-Duty Freight Elevator

• Capacity: 5,000 kg (11,000 lbs) | Configurable up to 15,000 kg (33,000 lbs)

• Car Interior: 3000 mm W x 4000 mm D x 2500 mm H (Fully Customizable)

• Speed: 0.4 m/s (Traction) / 0.3 m/s (Hydraulic)

• Drive System: AC Gearless Traction (VVVF) or Heavy-Duty Hydraulic (Variable Pump)

• Door System: 2-Speed Vertical Biparting (2400 mm W x 2500 mm H), Steel 2.0mm

• Control System: Microprocessor-based, group dispatch (optional), CAN-BUS, IoT ready

• Energy Consumption: < 3.8 kW avg. (Traction VVVF), < 4.5 kW avg. (Hydraulic VP)

• Compliance: EN 81-20/50, ASME A17.1, CE, Local Safety Codes

Critical Applications

• Warehousing & Logistics: Palletized goods, machinery between floors & loading bays.

• Manufacturing: Moving raw materials, presses, CNC equipment, finished products.

• Retail Back-of-House: Stock movement in malls, supermarkets, large stores.

• Service Cores: Dedicated lifts in high-rise buildings for furniture, maintenance, waste.

• Automotive/Aviation: Engine blocks, wings, vehicle transport within facilities.

• Large Residential Buildings: Moving appliances, renovations materials, bulk deliveries.

Why Our Freight Elevators Lead the Industry

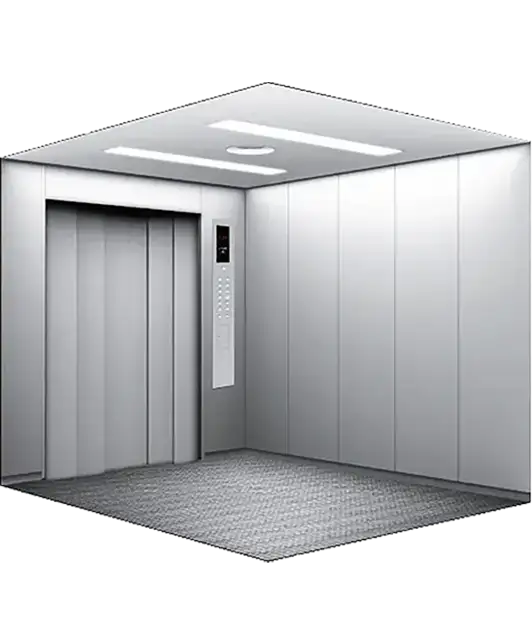

We use premium elevator components from Tier-1 suppliers: hardened steel guide rails, industrial-grade door operators, and PLC controls rated for 1 million+ cycles. The elevator car features 3mm reinforced steel walls, non-slip diamond plate flooring, and corner guards. Our focus on efficient vertical transportation directly reduces downtime and energy consumption, lowering your TCO (Total Cost of Ownership). Built for 24/7 operation in harsh environments, these lifts ensure decades of reliable service.

Upgrade Your Vertical Logistics Today
Request a site survey and engineered solution for your specific cargo lift needs. Maximize throughput and minimize operating costs.
